LVDS to TTL Signal Conversion Board
| Input Interface | LVDS |
|---|---|
| Input Voltage | 3.3~5.5V/5V(Typ) |
| Size Range | 3.5~10.1" |
| Output Interface | TTL FFC 50pin |
| Operating Temperature | -30℃~+85℃ |

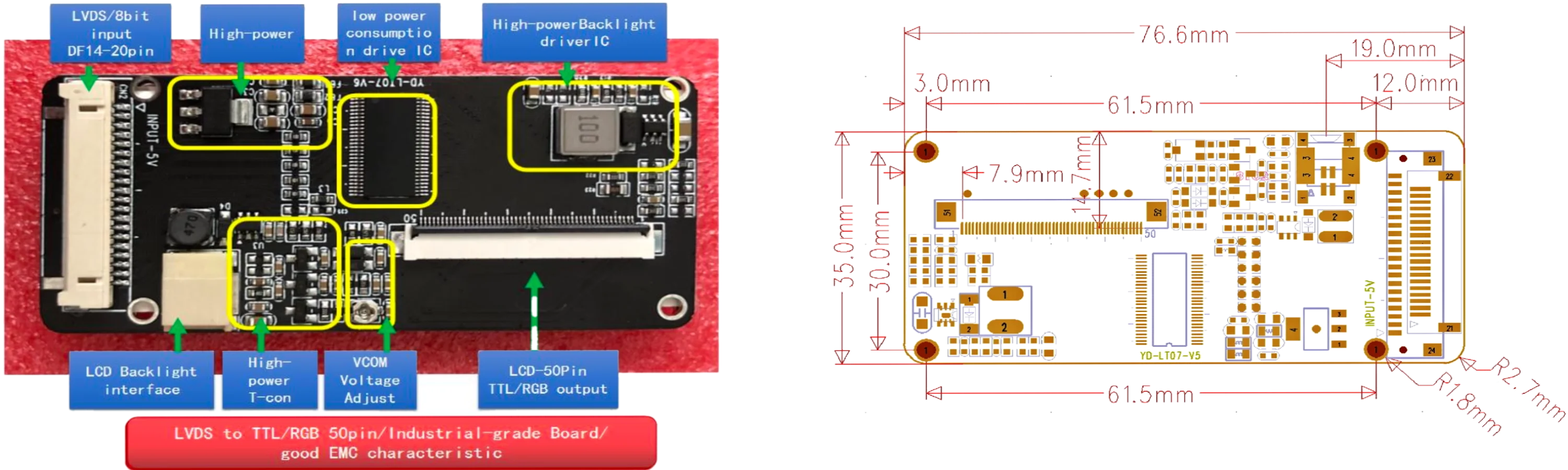

Product Introduction
This LVDS-to-TTL converter board supports 3.5" to 10.1" displays and ensures reliable operation in wide temperature environments.
HRS DF14-20/DF19-20 LVDS Interface：
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| Vin(5V) | GND | R0- | GND | R1+ | R2- | GND | TCLK+ | R3- | ON/OFF |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Vin(5V) | GND | R0+ | R1- | GND | R2+ | TCLK- | GND | R3+ | PWM |
TTL FFC 50 PIN T-CON Interface（TTL-50pin+TCON Driver):
| 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 27 | 29 | 31 | 33 | 35 | 37 | 39 | 41 | 43 | 45 | 47 | 49 |
| LED+ | LED- | GND | DVDD | DE | HS | B6 | B4 | B2 | B0 | G6 | G4 | G2 | G0 | R6 | R4 | R2 | R0 | DCLK | L/R | VGH | AVDD | NC | DITHB | NC |
| 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 |
| LED+ | LED- | Vcom | MODE | VS | B7 | B5 | B3 | B1 | G7 | G5 | G3 | G1 | R7 | R5 | R3 | R1 | GND | GND | U/D | VGL | RESET | Vcom | GND | NC |
