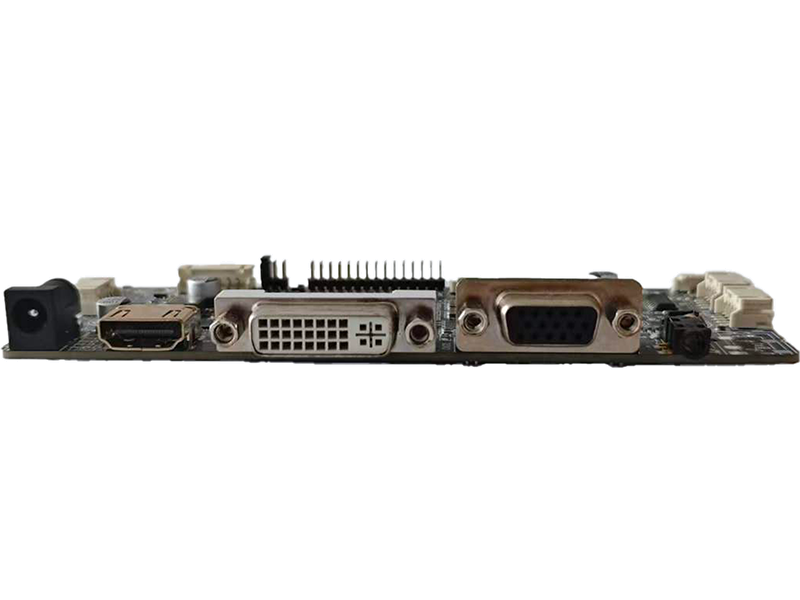

Industrial HDMI VGA DVI to LVDS LCD controller board

HDMI and VGA and DVI to LVDS Industrial LCD Controller Board

Input Signal	HDMI/VGA/DVI
Output Signal	LVDS
Input Voltage	12V
Backlight Output Voltage	12V
LVDS Signal Voltage	3.3/5/12V
Resolution Support	Up to 1920x1200
Operating Temperature	-20°C to 80°C

Product Introduction

This industrial LCD controller board is designed to convert HDMI, VGA, and DVI signals into LVDS output for LCD panels. It offers stable performance, high compatibility, and flexible customization, making it ideal for industrial display and embedded system applications.

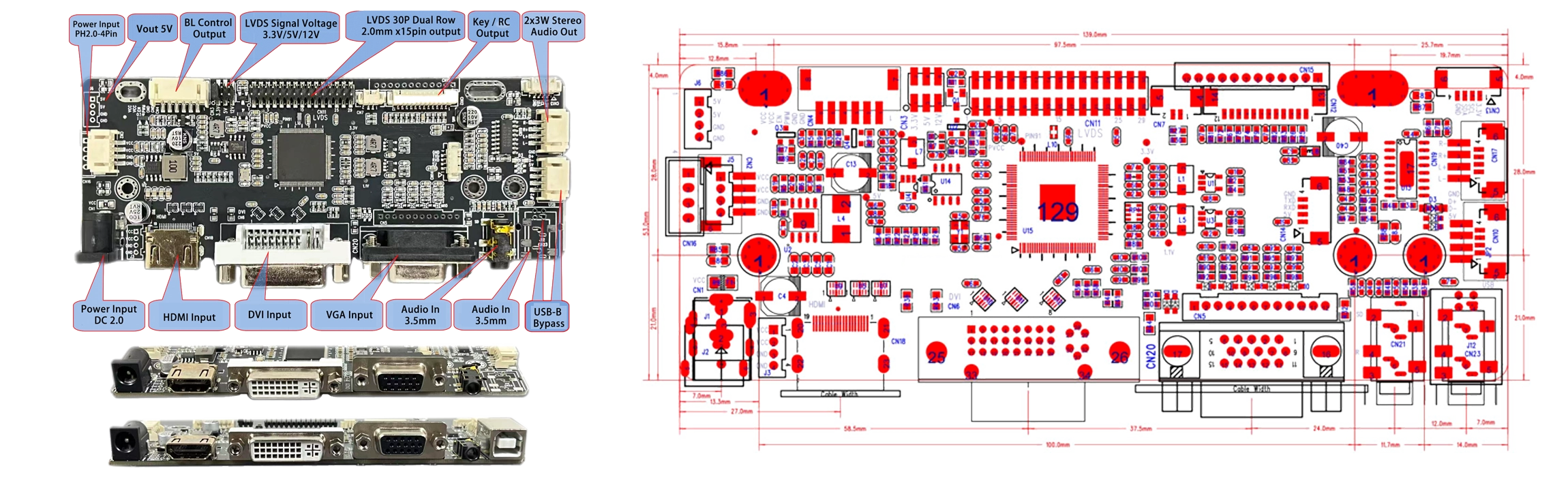

HDM VGA DVI to LVDS interface

Product Features	Widely used in
Supports HDMI, VGA, and DVI input signals	Industrial control systems
LVDS output for wide LCD panel compatibility	Embedded display solutions
Stable performance for industrial environments	Self-service kiosks
High reliability for long-term operation	Medical equipment displays
Customizable firmware available	POS terminals

JST 2x15 Pin LVDS Output Interface：

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29
VCC（3.3/5/12V）	VCC（3.3/5/12V）	GND	TXO0-	TXO1-	TXO2-	GND	TXOCLK-	TXO3-	TXE0-	TXE1-	TXE2-	GND	TXECLK-	TXE3-
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30
VCC（3.3/5/12V）	NC	GND	TXO0+	TXO1+	TXO2+	GND	TXOCLK+	TXO3+	TXE0+	TXE1+	TXE2+	GND	TXECLK+	TXE3+

PH2.0mm-6PIN Backlight Interface:

1	2	3	4	5	6
GND	GND	PWM	OFF	12V	12V

We provide comprehensive customization services, including LVDS pinout matching, panel matching, firmware adjustment, and tailored hardware and OSD support.

👉 Get a Quote Now

👉 Request Custom Solution
