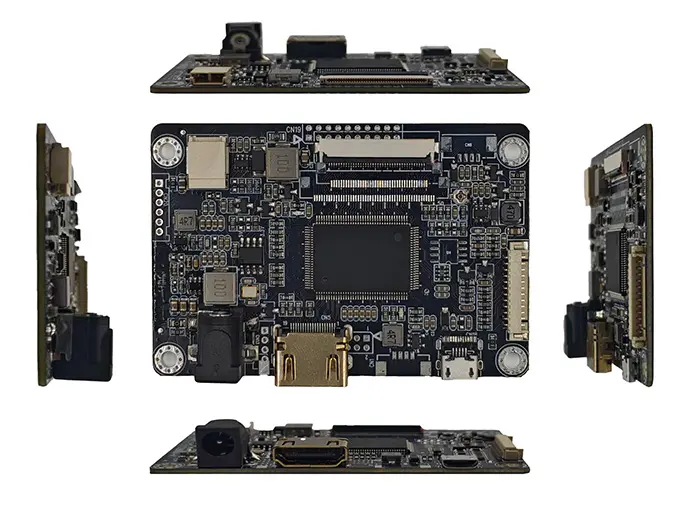

HDMI To TTL Interface AD Board

Input Interface	HDMI
Output Interface	LVDS FFC 40pin/TTL FFC 50pin/TTL FFC 40pin
Max Resolution	1920*1080
LVDS signal Output Voltage	3.3V/5V
Backlight Output Voltage	9V～29V
Input Voltage	12V
Operating Temperature	-20℃ to 80℃

Product Introduction

This is a high performance HDMI driver board designed for TFT LCD panels. It integrates T CON timing control and LED backlight driver, directly driving LVDS/TTL interface LCD modules without external T CON. Supports resolutions up to 1920×1200, wide voltage input, wide temperature, and OSD control. Widely used in industrial displays, medical devices, automotive, advertising players, and embedded systems.

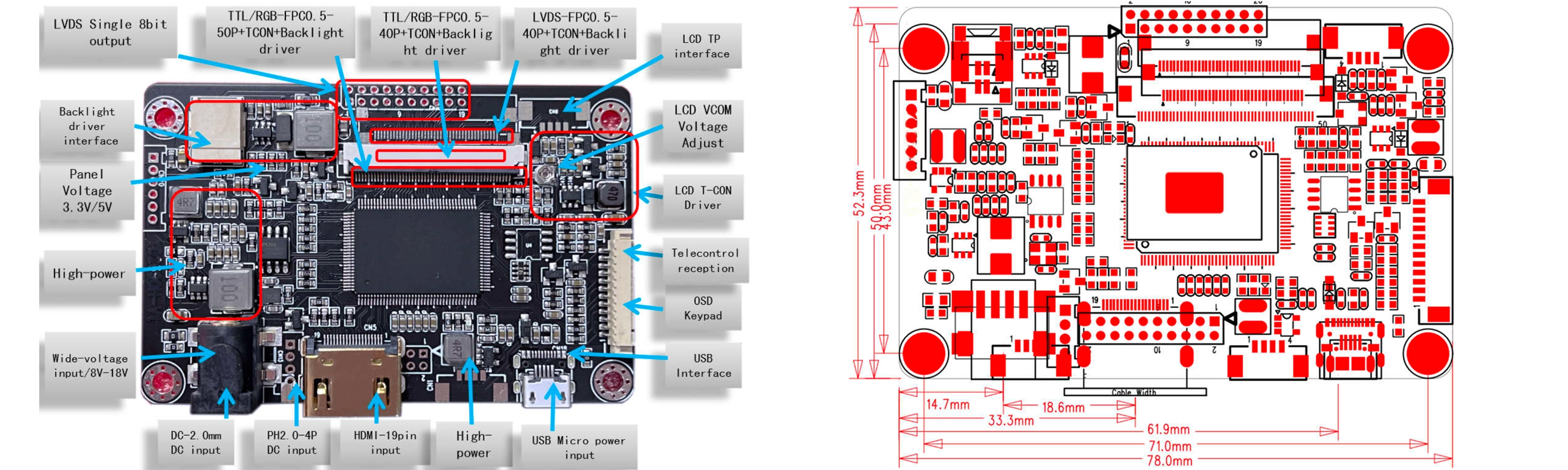

LCD HDMI Driver Board Drawing

FFC-0.5mm-40pin LVDS Interface:

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39
VCOM	DVCC	RESET	GND	R0+	R1-	GND	R2+	CLK-	GND	R3+	NC	GND	DIMO	AVDD	LED-	LR	VGL	CANC0	LED+
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40
DVCC	NC	STANDBY	R0-	GND	R1+	R2-	GND	CLK+	R3-	GND	NC	NC	DITHER	GND	LED-	UD	CABC1	VGH	LED+

FFC-0.5mm-50pin RGB Interface:

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39	41	43	45	47	49
LED+	LED-	GND	DVDD	DE	HS	B6	B4	B2	B0	G6	G4	G2	G0	R6	R4	R2	R0	DCLK	L/R	VGH	AVDD	NC	DITHB	NC
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50
LED+	LED-	VCOM	MODE	VS	B7	B5	B3	B1	G7	G5	G3	G1	R7	R5	R3	R1	GND	GND	U/D	VGL	RESET	VCOM	GND	NC

FFC-0.5mm-40pin RGB Interface:

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39
VLED-	GND	R0	R2	R4	R6	G0	G2	G4	G6	B0	B2	B4	B6	GND	DISP	VS	NC	X_R	X_L
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40
VLED+	VDD	R1	R3	R5	R7	G1	G3	G5	G7	B1	B3	B5	B7	DCLK	HS	DE	GND	Y_B	Y_T
