LVDS LCD Controller Board with HDMI VGA and AV Input

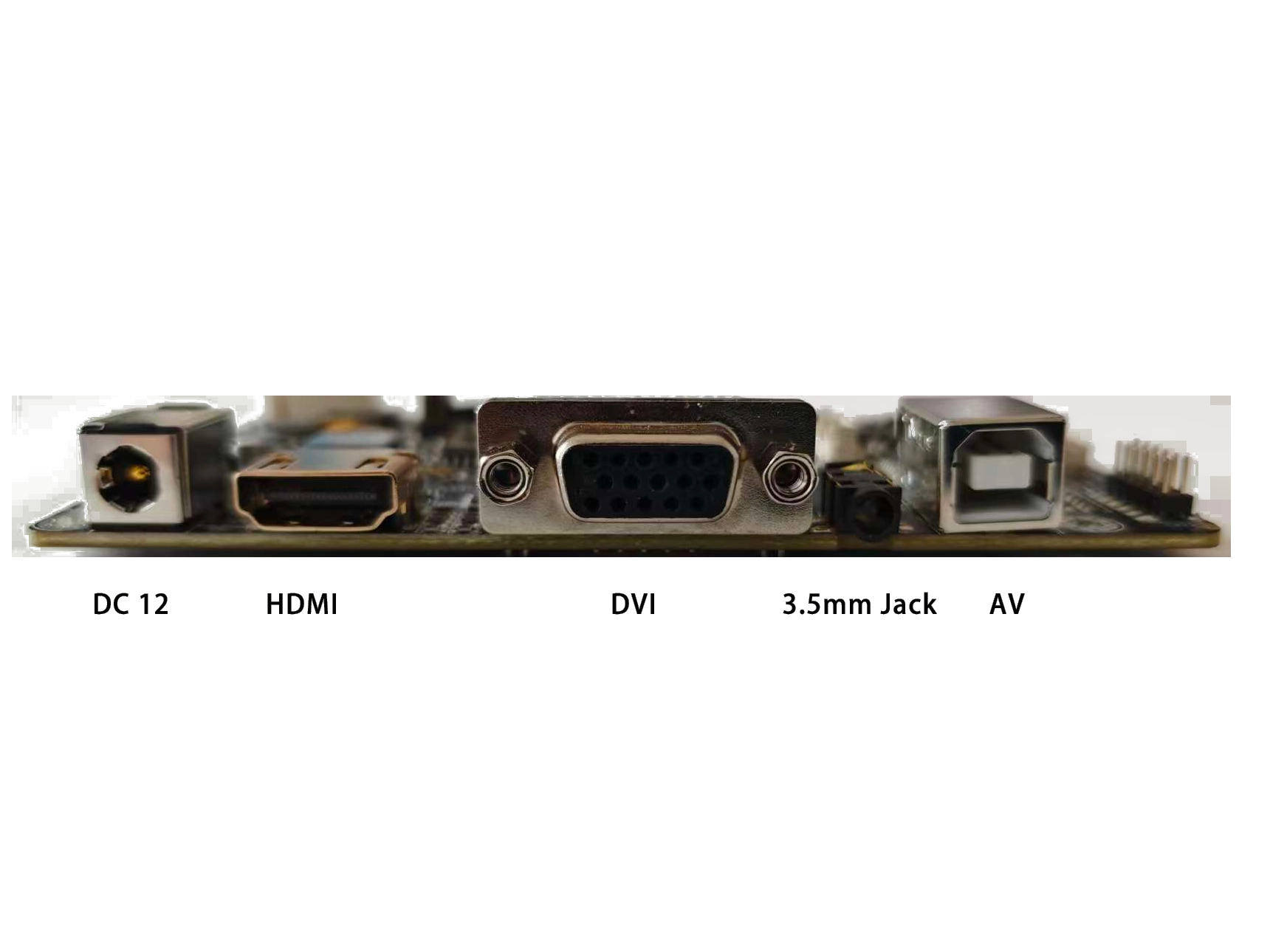

Industrial LCD Controller Board Interface Diagram Showing HDMI VGA AV and LVDS Connections

Industrial LCD Driver Board

Input Interface	HDMI/VGA
Input Voltage	DC 12V
Backlight Output Voltage	9~12V
Max Resolution	1920 X 1200
Output Interface	LVDS FFC 40pin/TTL FFC 50pin/LVDS 30 pin Dupont interface
LVDS Signal Voltage	3.3V/5V/12V
Operating Temperature	-20℃~+70℃

Product Introduction

This is an industrial-grade digital LCD driver board, primarily designed to convert TTL/LVDS signals to HDMI/VGA interfaces. It supports a maximum resolution of 1920x1200 and operates within a temperature range of -20℃ to +70℃.

The board offers selectable LVDS signal voltages of 3.3V, 5V, and 12V. For LED backlighting, it provides a standard 12V output as well as a wide voltage range option supporting 9V to 25V. The signal interfaces include a TTL FFC 50-pin, LVDS FFC 40-pin, and an LVDS 30-pin DuPont connector. It also supports an OSD button panel interface and an audio output.Input interfaces consist of HDMI and VGA, while the power input is DC 12V.

Built to withstand harsh environments, this high-specification driver board is specifically designed for industrial control products.

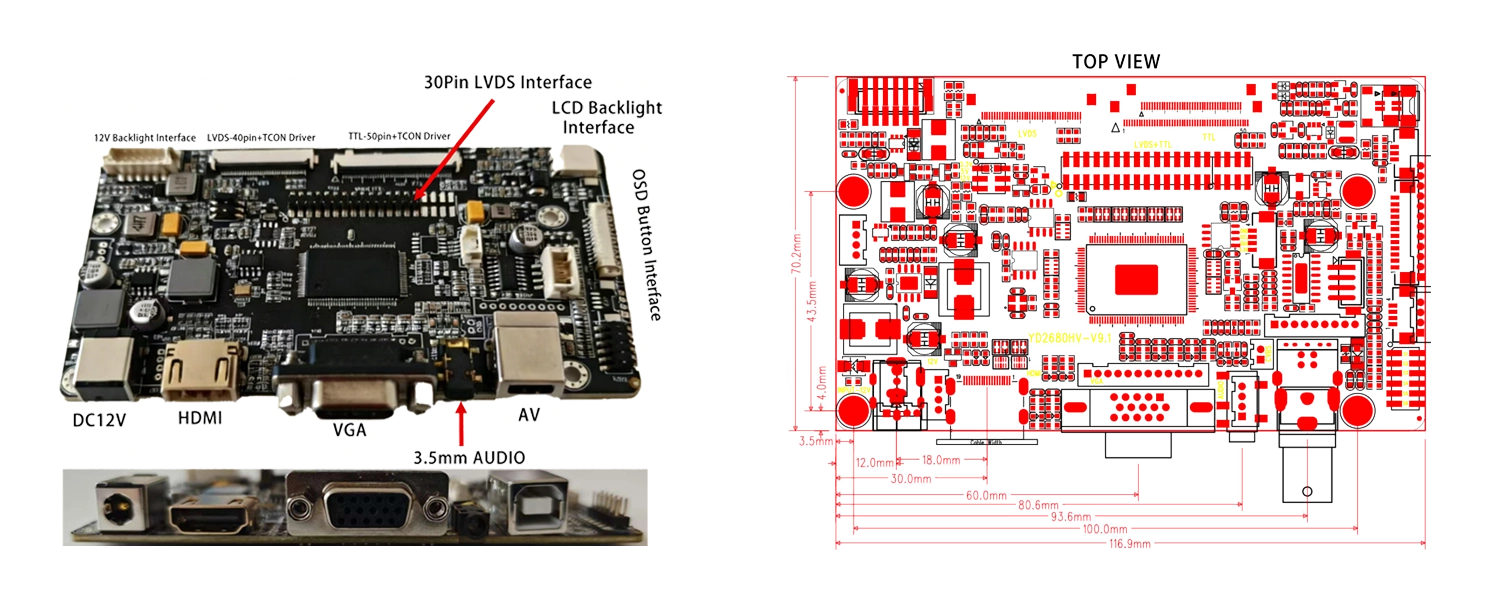

HDMI to LVDS interface details JST 2x15 Pin LVDS Input Interface (30PIN LVDS INTERFACE)：

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29
VCC(3.3/5V)	VCC(3.3/5V)	GND	TXO0-	TXO1-	TXO2-	GND	TXOCLK-	TXO3-	TXE0-	TXE1-	TXE2-	GND	TXECLK-	TXE3-
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30
VCC(3.3/5V)	GND	GND	TXO0+	TXO1+	TXO2+	GND	TXOCLK+	TXO3+	TXE0+	TXE1+	TXE2+	GND	TXCELK+	TXE3+

LVDS FFC 40 PIN 0.5mm Interface (LVDS-40PIN+TCON DRIVER)：

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39
VCOM	DVCC	RESET	GND	R0+	R1-	GND	R2+	CLK-	GND	R3+	NC	GND	DIMO	AVDD	LED-	LR	VGL	CANC0	LED+
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40
DVCC	NC	STANDBY	R0-	GND	R1+	R2-	GND	CLK+	R3-	GND	NC	NC	DITHER	GND	LED-	UD	CABC1	VGH	LED+

TTL FFC 50 PIN T-CON Interface（TTL-50pin+TCON Driver):

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39	41	43	45	47	49
LED+	LED-	GND	VCC(3.3/5V)	DE	HS	B6	B4	B2	B0	G6	G4	G2	G0	R6	R4	R2	R0	CLK	L/R	VGH	AVDD	NC	DITHB	NC
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50
LED+	LED-	Vcom	MODE	VS	B7	B5	B3	B1	G7	G5	G3	G1	R7	R5	R3	R1	GND	GND	U/D	VGL	RESET	Vcom	GND	NC
