2-HDMI to LVDS and TTL Interface AD Board

Input Interface	2 HDMI/VGA
Input Voltage	8～24V/DC 12V（Typ）
Backlight Output Voltage	9~25V
Max Resolution	1920 X 1200
Output Interface	LVDS FFC 40pin/TTL FFC 50pin/LVDS 30 pin Dupont interface
LVDS Signal Voltage	3.3V/5V/12V
Operating Temperature	-20℃~+70℃

Product Introduction

This is a driver board specifically designed for TFT LCD panels. It integrates a T-CON (timing controller) and an LED backlight driver, enabling direct driving of LVDS/TTL interface LCD modules without the need for an external T-CON board. Supporting resolutions up to 1920×1200, it features wide voltage input, wide operating temperature range, and OSD menu control, along with dual HDMI inputs. It is widely used in industrial displays, medical equipment, automotive systems, advertising players, and embedded systems.

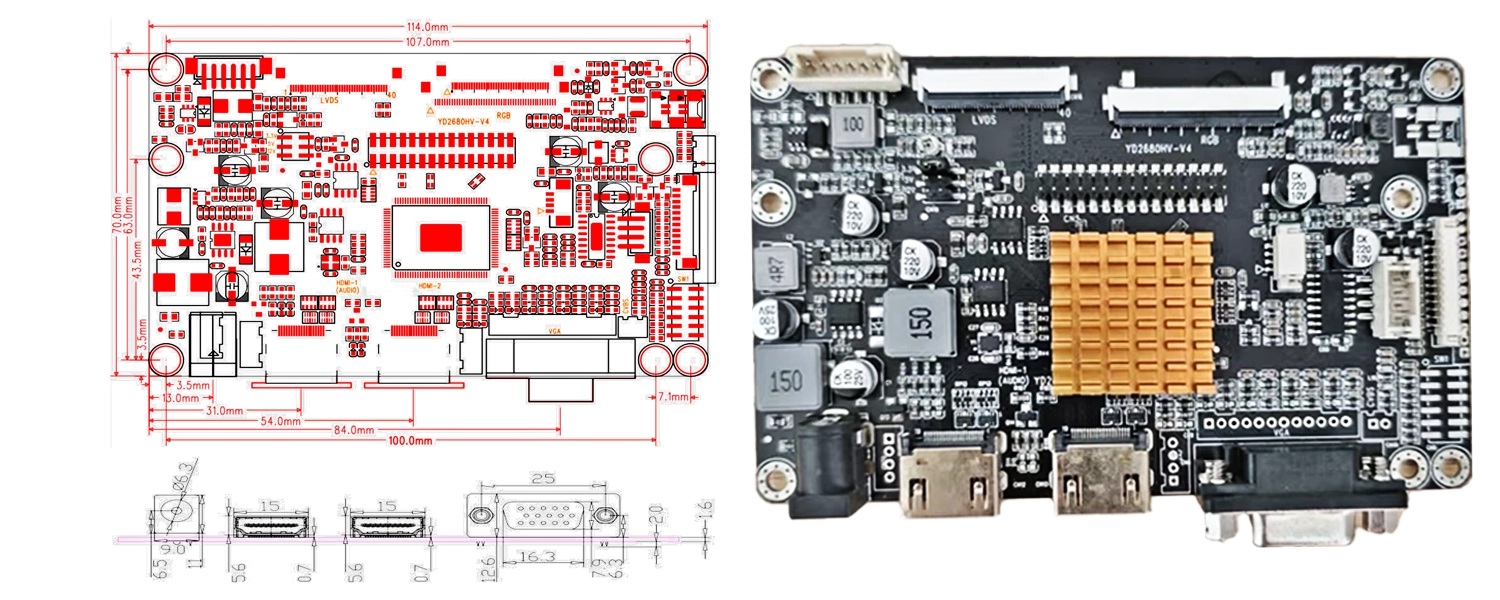

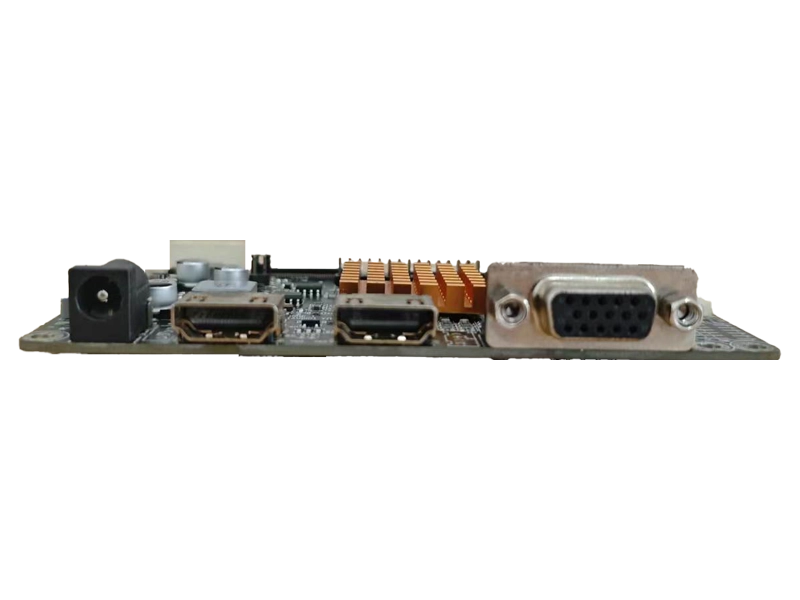

2 hdmi to lvds interface ad board details

JST 2x15 Pin LVDS Input Interface (30PIN LVDS INTERFACE)：

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29
VCC(3.3/5V)	VCC(3.3/5V)	GND	TXO0-	TXO1-	TXO2-	GND	TXOCLK-	TXO3-	TXE0-	TXE1-	TXE2-	GND	TXECLK-	TXE3-
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30
VCC(3.3/5V)	NC	GND	TXO0+	TXO1+	TXO2+	GND	TXOCLK+	TXO3+	TXE0+	TXE1+	TXE2+	GND	TXCELK+	TXE3+

LVDS FFC 40 PIN 0.5mm Interface (LVDS-40PIN+TCON DRIVER)：

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39
VCOM	DVCC	RESET	GND	R0+	R1-	GND	R2+	CLK-	GND	R3+	NC	GND	DIMO	AVDD	LED-	LR	VGL	CANC0	LED+
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40
DVCC	NC	STANDBY	R0-	GND	R1+	R2-	GND	CLK+	R3-	GND	NC	NC	DITHER	GND	LED-	UD	CABC1	VGH	LED+

TTL FFC 50 PIN T-CON Interface（TTL-50pin+TCON Driver):

1	3	5	7	9	11	13	15	17	19	21	23	25	27	29	31	33	35	37	39	41	43	45	47	49
LED+	LED-	GND	DVDD(3.3/5V)	DE	HS	B6	B4	B2	B0	G6	G4	G2	G0	R6	R4	R2	R0	DCLK	L/R	VGH	AVDD	POL	NC	NC
2	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50
LED+	LED-	Vcom	MODE	VS	B7	B5	B3	B1	G7	G5	G3	G1	R7	R5	R3	R1	GND	GND	U/D	VGL	RESET	Vcom	NC	NC
