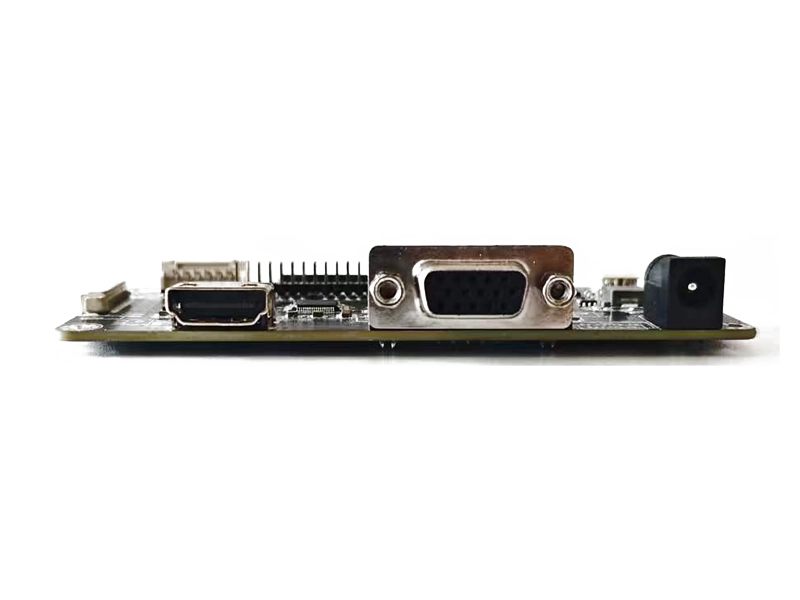

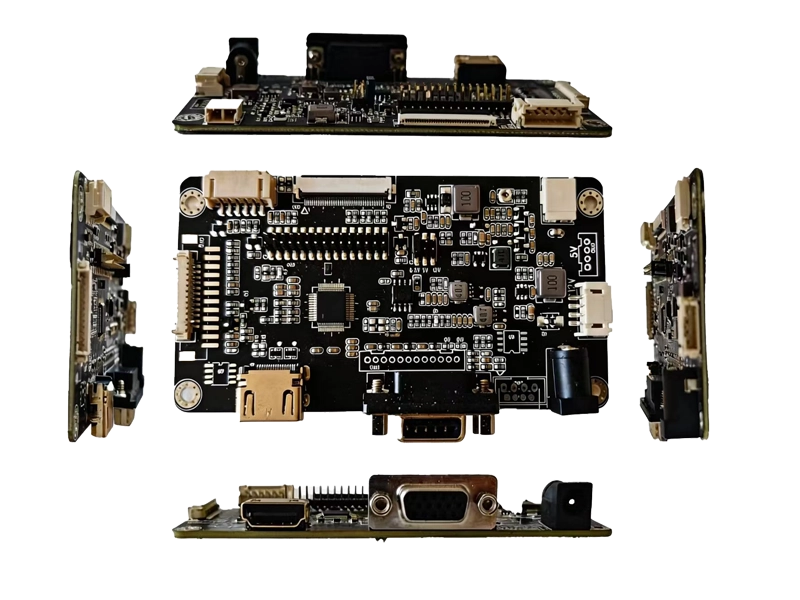

The LCD driver board is primarily designed for TFT LCDs, making it suitable for liquid crystal displays and other types of flat panel displays.

·Input Signal Types: Digital HD (HDMI), Analog (RGB, VGA)

·The board supports a wide voltage input range of 8V~18V, with a typical value of 12V. (Note: When the panel supply is 12V, the board supply must also be 12V.)

·Supports display resolutions from 800x480 to 1920x1200.

·The board features a built-in LED backlight driver circuit; it supports 9~25V voltage drive for small to medium-sized LED backlights.

·The board features a built-in T-CON circuit, allowing it to directly drive small to medium-sized LVDS LCDs that do not have a T-CON.

·Backlight power supply supports 5V/12V (default 12V), and supports PWM duty cycle adjustment for backlight brightness.

·Display Output Interface: LVDS Single 6-bit, LVDS Single 8-bit.

·PC Compatibility: Adapts to PC graphics cards via high-definition HDMI and analog RGB (VGA) inputs.

·Wide Operating Temperature Range: -10℃ to +70℃

Features: This board features simple operation and reliable performance.

LVDS FFC 40 PIN 0.5mm Interface：

CVILUX 6-Pin 2.0mm Backlight Interface：
