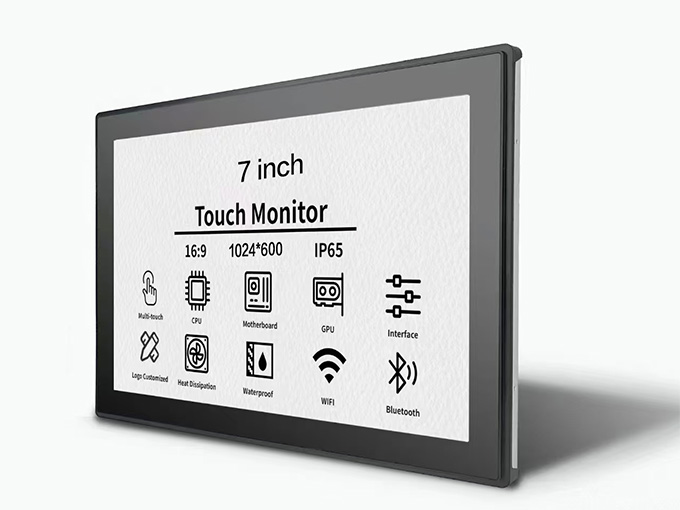

7 Inch Open Frame Touchscreen Monitor
| Application Scenario 1 | Industrial Control |
|---|---|
| Application Scenario 2 | Self-service Terminal |
| Application Scenario 3 | Smart Medical Devices |
| Application Scenario 4 | New Retail |
| Application Scenario 5 | Interactive Display |
| Application Scenario 6 | Parcel Locker Display |
| Application Scenario 7 | Transportation Systems |
Product Introduction
| Baseline Configuration | Customization Options | |
| LCD Display | ||
| Size | 7 " | |
| Resolution | 800*480 or 1024*600 | |
| Viewing Angle | 170º/170º | |
| Brightness | Min 300 cd/m² | Brightness Option From 300 to 1000 cd/m² Available |
| Contrast Ratio | 500:1 | |
| Color Support | 16.2 million | |
| Touch Technology | ||
| Technology | 10-Point Capacitive Touch Technology | |
| Surface Coating | AG | Surface Coating Selection（AG、AR、AS、AF） |
| Response Time | <10ms | |
| System | ||
| Connectivity | HDMI | Connectivity Selection（HDMI、DVI、VGA） |
| Touchscreen Interface | USB-A | Interface Selection（I²S or USB） |
| Electronic Boards | AD board | System Solution Selection（AD board、Android Solution、Windows Solution） |
| Power Dissipation | Max 20W | |
| Input Power | DC 12V/3A，DC Jack 2.0mm | |
| Operating Environment | ||
| Temperature | 0ºC~50ºC | Temp. Range Option: -20°C ~ 70°C (available upon request) |
| Vibratory Environment | 1G peak，5～50Hz | |
| Mounting Options | Rear VESA, Edge- Mounting Holes | |
