Industry LCD Display
| Size range | From 3.5 inch to 32 inch |
|---|---|
| Wide Temperature | Min TYP： -20 to +70 ℃ （Operating Temperature） |
| LED Life | From 30000 to 100000（hours） |
| Brightness | From 300 cd/m² to 1600 cd/m² |
| Wide Viewing Angle | From 170º to 178 º |
| Supply Cycle | Minimum of five years |
Product Introduction
High-Performance Industrial LCD Screens – Designed for Harsh Environments
(Enhance the Reliability of Your Industrial Products)
Industrial displays are designed to integrate with products across multiple industries, including industrial manufacturing, energy, transportation, and automation control. We offer a wide range of sizes and customizable configurations, with optional touch screen functionality and other specialized performance requirements. Our screens can be paired with AD boards and support various signal input interfaces such as HDMI, DVI, VGA, and more, meeting diverse system integration needs.
Product Features:
- High Brightness Display: Clear visibility even in bright ambient lighting conditions, with peak brightness reaching up to approximately 1500 nits
- Wide Viewing Angle Technology : Ensures distortion-free viewing from multiple angles
- Wide Temperature Adaptability: Stable operation under extreme temperature conditions, with an operating range of up to -30°C to +85°C, ensuring reliable 24/7 performance
- Strong Anti-Interference Capability: Effectively resists electromagnetic interference (EMI) in industrial environments, ensuring stable and clear display output
- Long-Life Design: Reduces replacement frequency and maintenance costs
- Long-Term Supply Assurance: Standard supply cycle of at least 5 years; future product iterations will continue to support supply upgrades
Application Scenarios:

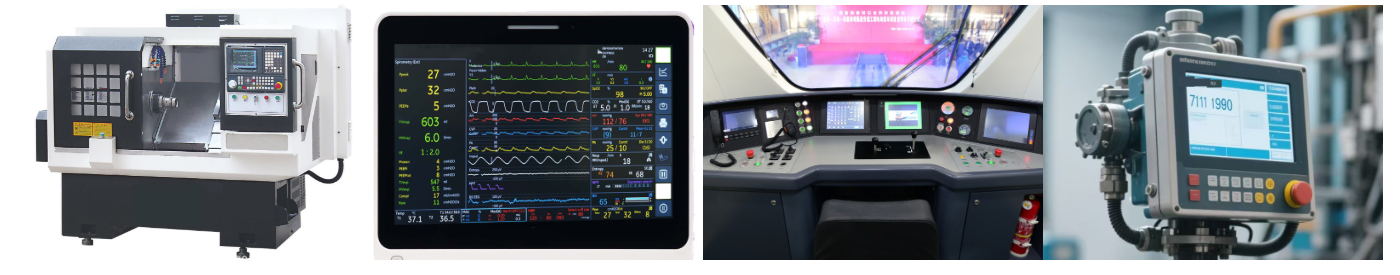

Widely used in industrial automation control systems, medical equipment, outdoor surveillance, transportation systems, and more.
SKY-TDM offers a complete set of integration services, including:
- Customized Touch Screens
- Customized AD Boards
- Customized Signal Cables
Helping you achieve efficient and stable industrial display solutions.
| Size | Resolution | Display Model | Max Brightness（cd/m²） | Max LED life（hours） | Interface |
| 3.5" | 320*240 | TN | 1000 | 50000 | RGB |
| 320*480 | TN | RGB/SPI | |||
| 320*240 | IPS | RGB/SPI | |||
| 1920*1080 | IPS | MIPI | |||
| 4.3" | 480*272 | TN | 800 | 50000 | RGB |
| 5.5" | 720*1280 | IPS | 400 | 30000 | MIPI |
| 5.6" | 640*480 | TN | 400 | 30000 | RGB |
| 5.7" | 640*480 | IPS/TN | 1000 | 70000 | RGB/LVDS |
| 320*240 | TN | RGB | |||
| 7" | 800*480 | IPS/TN | 1000 | 50000 | RGB/LVDS |
| 1024*600 | TN | 500 | 30000 | LVDS | |
| 1280*800 | IPS | 600 | 50000 | ||
| 800*1280 | IPS | 500 | 30000 | MIPI | |
| 8" | 800*600 | TN | 400 | 30000 | RGB |
| 800*1280 | IPS | 300 | 30000 | MIPI | |
| 8.4" | 800*600 | IPS/TN | 1200 | 50000 | RGB/LVDS |
| 1024*768 | IPS | 1000 | 100000 | LVDS | |
| 10.1" | 1024*600 | TN | 500 | 30000 | RGB/LVDS |
| 1280*800 | IPS | 1200 | 50000 | LVDS | |
| 10.4 | 800*600 | IPS/TN | 1200 | 70000 | RGB/LVDS |
| 1024*768 | IPS/TN | 1300 | 70000 | LVDS | |
| 11.6" | 1920*1080 | IPS | 1600 | 30000 | eDP/LVDS |
| 12.1" | 1280*800 | IPS | 1500 | 50000 | LVDS |
| 1024*768 | IPS/TN | 1300 | 100000 | LVDS | |
| 13.3" | 1920*1080 | IPS | 1000 | 50000 | eDP/LVDS |
| 15" | 1024*768 | IPS/TN | 1800 | 50000 | LVDS |
| 15.6" | 1920*1080 | IPS/TN | 1500 | 50000 | eDP/LVDS |
| 17" | 1280*1024 | IPS/TN | 800 | 50000 | LVDS |
| 17.3" | 1920*1080 | IPS/TN | 500 | 50000 | eDP/LVDS |
| 18.5" | 1920*1080 | IPS | 1800 | 50000 | eDP/LVDS |
| 19" | 1280*1024 | IPS | 1600 | 50000 | LVDS |
| 21.5" | 1920*1080 | IPS | 1500 | 50000 | LVDS |
| 23.8" | 1920*1080 | IPS | 1000 | 50000 | LVDS |
| 24" | 1920*1080 | IPS | 1500 | 50000 | LVDS |
| 1920*1200 | IPS | 900 | 50000 | LVDS | |
| 27" | 1920*1080 | IPS | 1500 | 50000 | LVDS |
| 32" | 1920*1080 | IPS | 1500 | 50000 | LVDS |
| 3840*2160 | IPS | 700 | 30000 | eDP/V-by-One |
