As industrial equipment increasingly moves toward intelligence and specialization, display systems are no longer just a screen connected to a computer. For OEM manufacturers and system integrators, a display must be an integral part of a complete hardware architecture, seamlessly matching the LCD panel, video source, power system, backlight, firmware, and mechanical structure.

Against this backdrop, the industrial LCD driver board has become an indispensable component of the overall display solution.

At SKY-TDM, we provide professional LCD driver boards to help equipment manufacturers connect various video sources with LVDS, eDP, TTL, and other LCD interfaces. Our product portfolio includes LVDS AD boards, HDMI/VGA/DVI to LVDS controller boards, LVDS to eDP controller boards, LVDS to TTL converter boards, and multi-interface controller boards.

From LCD Panels to Complete Display Systems

In industrial projects, selecting an LCD panel is only one part of the development process.

By the time the project team begins the design phase, they may already be equipped with an industrial PC, embedded computer, ARM platform, or other host systems. Meanwhile, the selected LCD panel might use an LVDS, eDP, or TTL/RGB interface, while the host system provides HDMI, DisplayPort (DP), VGA, DVI, USB Type-C, or other video interfaces. The driver board serves as the bridge connecting these different technologies.

When an LCD panel or host system changes, rather than redesigning the entire display architecture, selecting a suitable LCD driver board offers a practical way to integrate existing hardware. This approach is especially valuable for OEM equipment manufacturers who need to maintain the same control platform while offering different display sizes or LCD panel configurations.

Different Display Projects May Require Different Controller Solutions

There is no "one-size-fits-all" LCD driver board for industrial applications. While a simple industrial monitor might only require HDMI to LVDS conversion, other projects may demand multiple video inputs, eDP output, image rotation, programmable firmware, or specific voltage requirements.

Therefore, we provides various controller architectures tailored to specific project requirements.

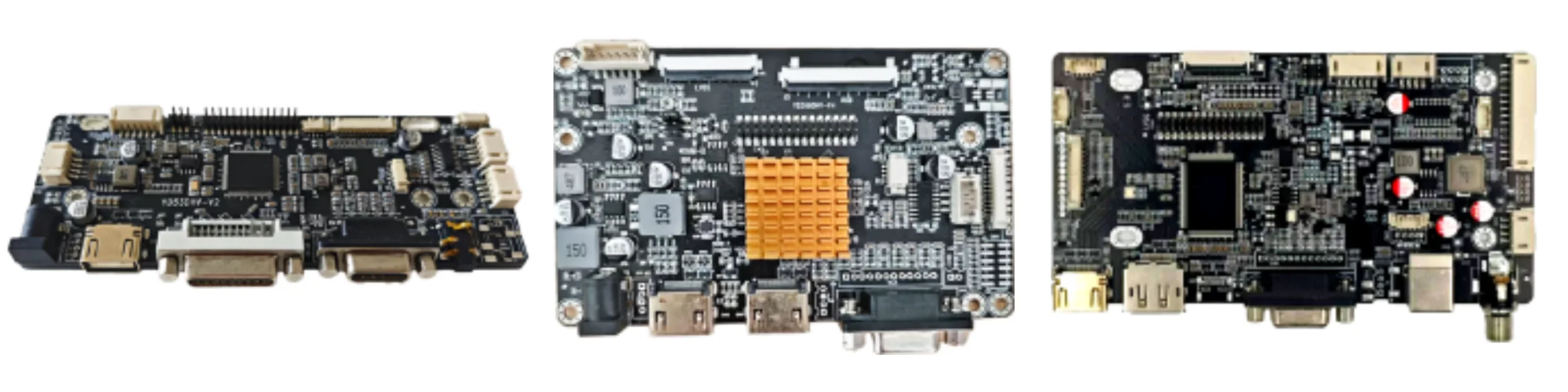

Our current portfolio of driver boards includes: HDMI to TTL interface boards, HDMI/VGA/DVI to LVDS driver boards, LVDS to eDP converter boards, HDMI/VGA to LVDS driver boards, HDMI/DP/VGA to LVDS/eDP interface boards, HDMI/DP/VGA/Type-C to LVDS/eDP interface boards, LVDS to TTL converter boards, and dual-HDMI to LVDS/TTL driver boards. Additionally, we provide USB-RTD high-speed programmers for LCD driver boards, offering great convenience for customers to burn different firmware programs.

SKY-TDM's extensive product line enables us to support everything from straightforward display upgrades to more complex embedded display projects.

Why Driver Board Compatibility Is Crucial

For equipment manufacturers, the problems caused by an incompatible driver board go far beyond simply "failing to display an image." Incorrect timing parameters, incompatible LVDS configurations, improper panel voltage, backlight control issues, or firmware limitations can all lead to unstable images, abnormal display performance, and additional development workload.

Therefore, we always views the driver board as an integral part of a complete display system, rather than an isolated PCB. Before selecting a driver board, the project team may need to evaluate the following product specifications:

LCD Panel Interface: LVDS, eDP, TTL/RGB, and other interface configurations must match the controller's output.

Video Input: The input signal must be determined, such as standard signals like HDMI, VGA, DVI, DP, or USB Type-C.

Resolution and Timing: The driver board and LCD panel must work together according to the panel's resolution and timing requirements, and the matching firmware must be debugged.

Power Configuration: During system integration, factors such as the LCD panel voltage, driver board input voltage, motherboard power input voltage, and backlight power consumption must be considered.

Firmware and OSD: For customized equipment, firmware configuration and OSD (On-Screen Display) settings affect the user interface and overall system operation. The OSD can support debugging of brightness, contrast, audio, etc., while the firmware is customized and debugged according to the specific requirements of the LCD panel.

Mechanical Integration: PCB dimensions, connector positions, cable routing, and installation space will also affect the internal layout of the product.

Beyond Standard Driver Boards

Every project has unique requirements, which is why standard products sometimes fall short of customer needs.

We supports OEM/ODM display projects where LCD driver boards must be matched to specific LCD panels or equipment architectures. Our customization services include panel compatibility, interface configuration matching, firmware debugging, display parameter tuning, cable configuration, and other specific requirements.

Additionally, the company offers industrial LCD displays, touch panels, open-frame touchscreen monitors,and related display components to fully meet customers' comprehensive display needs. For system integrators, this streamlines communication between different components and reduces compatibility issues during the development process.

The LCD Controller Board Is the Core of the Display Solution

The role of an Industrial LCD driver board goes far beyond simply converting video signals. In an industrial display system, it dictates how the LCD panel communicates with the host system, how images are processed, how the backlight operates, and how easily the display can be integrated into the final equipment.

This is why the right driver board must be selected in conjunction with the LCD panel and the complete application environment. Backed by an extensive product line of industrial LCD driver boards, robust industrial display integration capabilities, and comprehensive OEM/ODM support, we helps equipment manufacturers develop display systems that are easier to integrate, maintain, and scale.

Looking for a Controller for Your Industrial LCD?

If you already have an LCD panel, industrial PC, embedded system, or existing display architecture, SKY-TDM can help evaluate your interface and compatibility requirements, and recommend the most suitable industrial LCD driver board solution.

Please share your LCD model, resolution, interface, video input, and project requirements with our engineering team to discuss a customized industrial display solution tailored to your needs.
